Case study: Direct steam technology expands production capacity
The client is one of the largest dairy and food companies in Israel and having previously brought in plant-based drinks in bulk from an associated European company for bottling, in 2021 they invested in a new production line to allow them to process raw materials (such as oats, soybeans, coconut and hazelnut) in-house as part of an expansion of their dairy alternatives business. Consequently, the new production facility includes many elements including grinding, extraction and bulk supply for bottling elsewhere. The HRS Direct Steam Injection (DSI) forms part of a complete ultra-heat treatment (UHT) system supplied by HRS for integration into the new production facility.
One of the challenges was the space available for the UHT portion of the production facility. HRS was able to design a complete, cost-competitive heat treatment solution based around the HRS DSI and other heating and cooling technologies, which was skid-mounted to facilitate installation and commissioning in the available space.

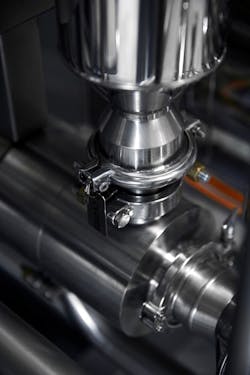

Direct steam injection provides many advantages over traditional UHT systems based on heat exchangers, particularly when it comes to the viscous nature of plant-based ‘milk’ drinks. The biggest advantage is in terms of speed, with direct injection taking a fraction of the time to heat (and then cool) the product compared to other methods of pasteurization such as indirect heating using heat exchangers. This matters as the faster the product is heated and cooled, the less impact the heat has on the product – in the case of plant-based drinks this can include discoloration, caramelization and the introduction of off-tastes.
“With direct steam injection you get a sudden and immediate increase in temperature,” said Francisco Hernández Ortiz, food business development director at HRS Heat Exchangers. “We have standard pre-heating phase using an HRS MI Series heat exchanger which takes the product to 176 °F, and we then inject the steam which immediately increases the product temperature to 284 °F. A flash cooler is then used to return the product to 176 °F within a few seconds, so the heat has time to pasteurize the product, but other heat effects, such as caramelization, do not have time to occur.”
After this, chilled water and a glycol solution are used to cool the product to the final temperature of 39 °F.
A second major advantage of using steam injection rather than traditional heat exchanger technology is that it avoids issues with fouling of the heat exchanger, which can be a problem with the viscous nature of some plant-based drink products.
“As there is no heat exchanger, there is no surface and so there is no fouling,” Francisco said.
The HRS equipment was delivered in early September 2021, although delays with other parts of the line meant that it was not installed immediately. HRS pre-commissioned the unit on site from late November, but before final commissioning using actual product could take place, a Covid outbreak closed the Israeli border to all travelers.
“The way the HRS DSI Series and associated equipment is designed meant that we could undertake the necessary commissioning work remotely, so that the unit was operational by January 2022,” Francisco said. “I then visited in person in March to carry out a few final pieces of commissioning and since then the unit has been running without any issues.”
Francisco Hernández Ortiz is the food business development director at HRS Heat Exchangers
